plant 01
SUB UHERSKÝ BROD

Machining

Production halls of 5 plants of Slovácké strojírny, a. s. are equipped with high-quality machinery to perform heavy and light machining, assembly and testing of individual products.

Machining:

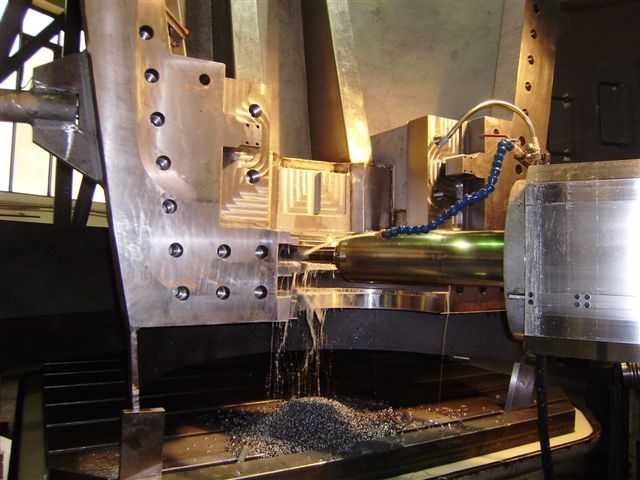

Horizontal boring mills

It is used for the processing of parts with max. Dimensions for X-axis: 20,000 mm, Y: 4,000 mm, Z: 1,000 mm.

Type pcs X-axis mm Y-axis mm Z-axis mm W axis mm Clamping surface
W 160H NC 1 Select size 18,200   5,000  1,600  1,250 cm 18,200 x 6,000
HCW 1-160 1 16 500 5 000 1 200 1 000 16,500 x 6,000
WHN (Q) 13 CNC 3 5 000 3 000 2 000 800 2,200 x 1,800
MAGNA II WRD 150 Q 2 20 000 4 000 1 000 800 20,000 x 6,000
HCW 3-200 NC 1 30 000 9 000 1 600 1 400 30,000 x 6,000

Vertical Machining Centres

It is used for machining parts up to a diameter of 2,100 mm and a length of 12,000 mm.

Type pcs X-axis mm Y-axis mm Z-axis mm Clamping surface
MCFV 125 EZ 1  1,270 mm 610 760 1 450 x 610
MCFV 1260 NT 1 1 270 610 760 1 450 x 610
MCF 2080 NT 1 2 030 810 810 2 200 x 780
MCV 32 2 480 320 500 860 x 320

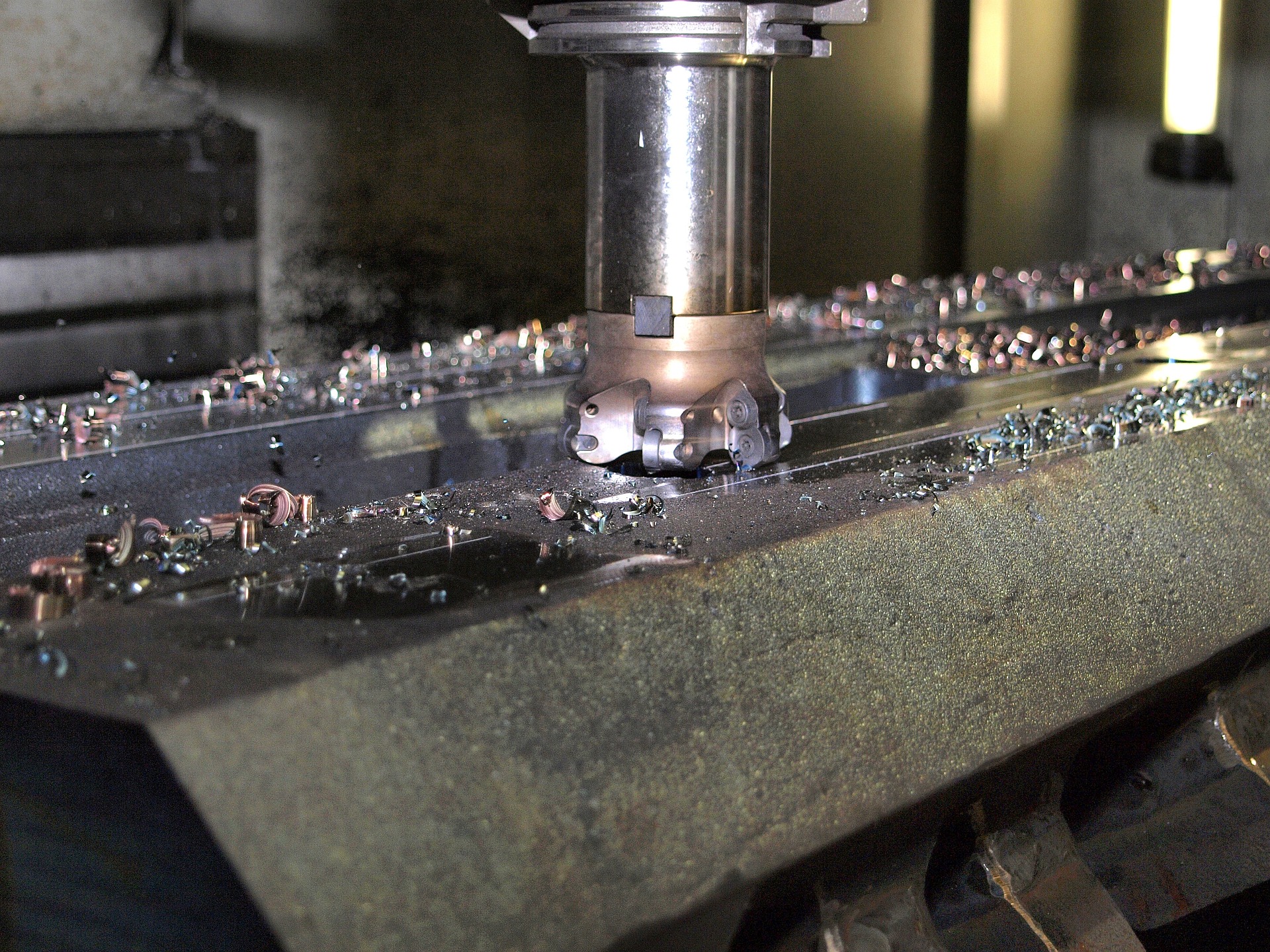

Vertical milling machines

It is used for milling parts with diameters from 200 mm to 4700 mm, heights up to 2500 mm.

Type pcs X-axis mm Y-axis mm Z-axis mm Clamping surface
FCR 50 CNC 1  1,250 cm 500 560 2,000 x 500
FCV 63 1 1 500 600 630 2 200 x 630
FCR 50 1 1 200 500 500 1 500 x 500

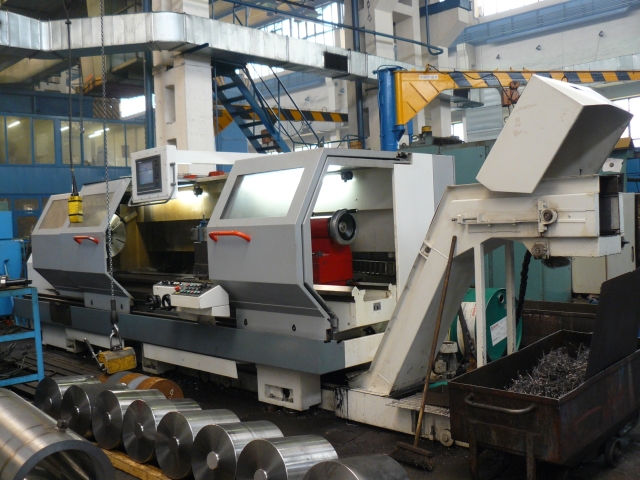

CNC lathes

It is used for turning parts with diameters from 20 mm to 1000 mm, lengths up to 6000 mm.

Type pcs x1 mm x2 mm Z mm
SPT 32 3 175 225  1,500 mm
MASTURN 1 530 820 3 000
MASTURN 1 530 820 4 500
NL 1500SY 2 52/160 515

Machining centres

It is used for machining parts up to a diameter of 2,100 mm and a length of 12,000 mm.

Type pcs X-axis mm Y-axis mm Z-axis mm W axis mm Clamping surface
DMU 70 1 750 600 520 360° (-10°/+95°)  1,000 x 620 (Ø 800 x620)
MB-500H 1 700 900 780 500 x 500
