TOS – SUA 100 Numeric

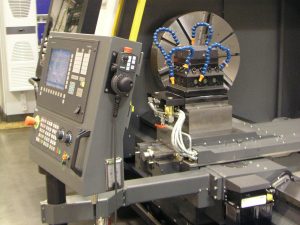

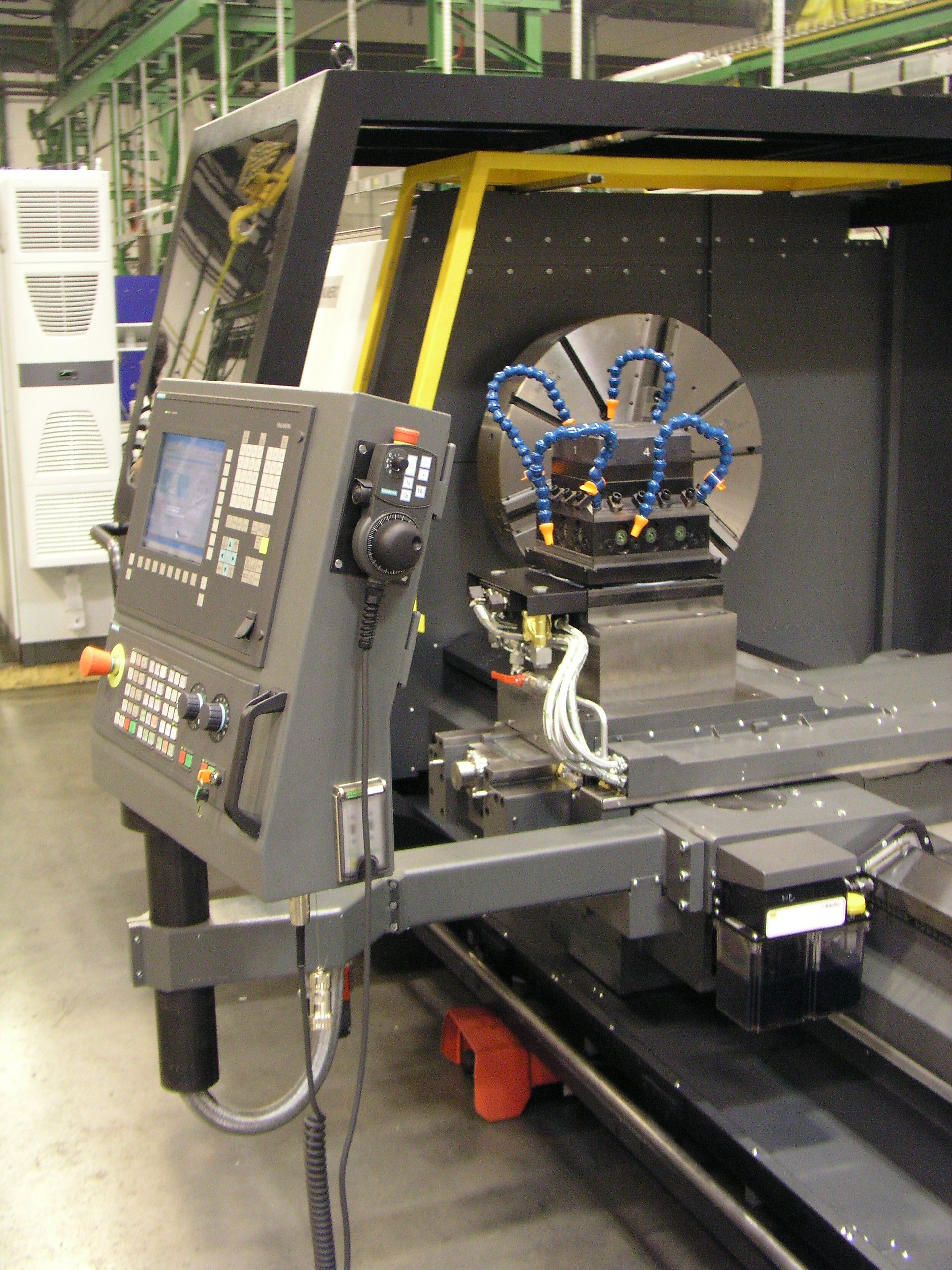

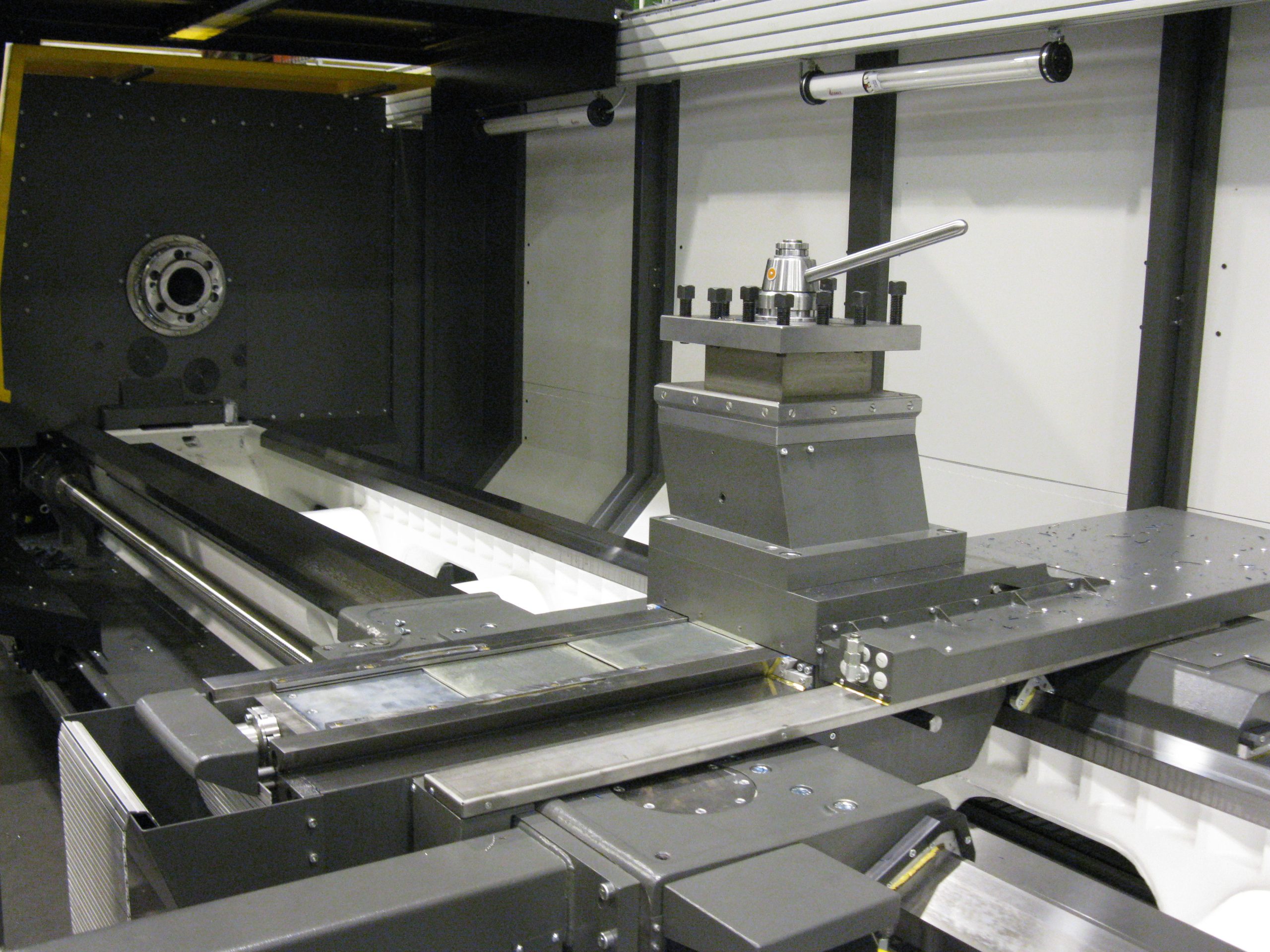

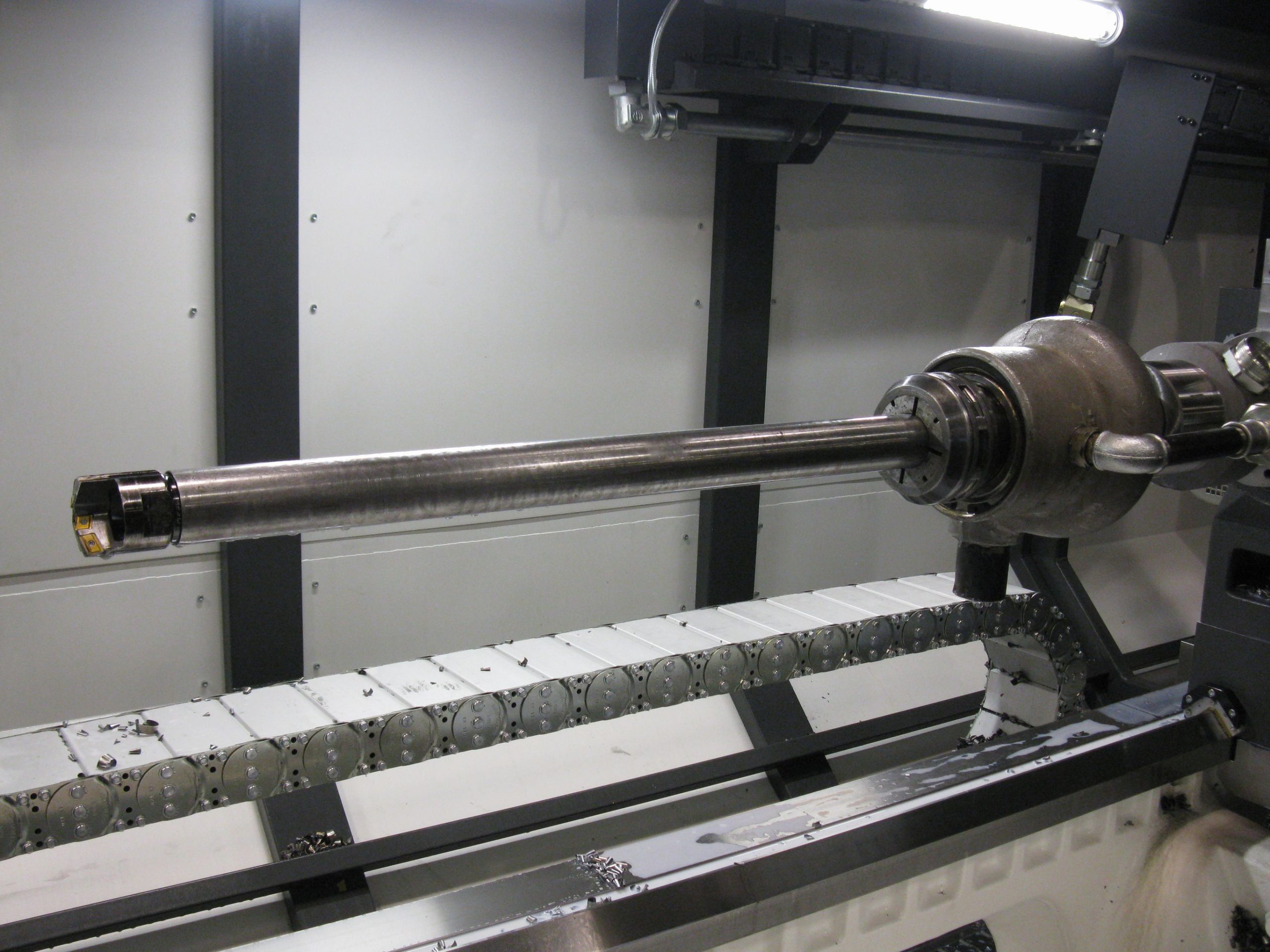

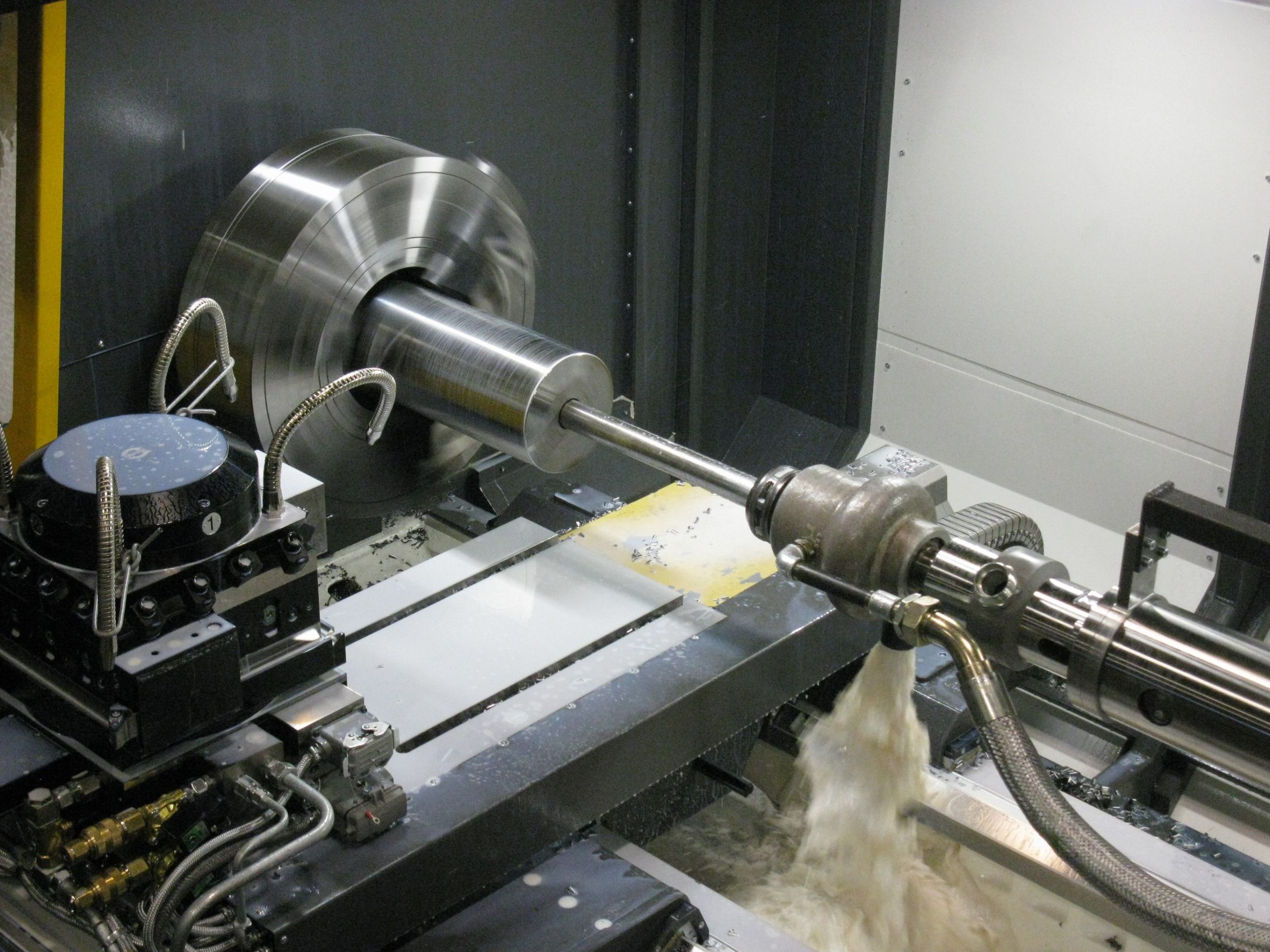

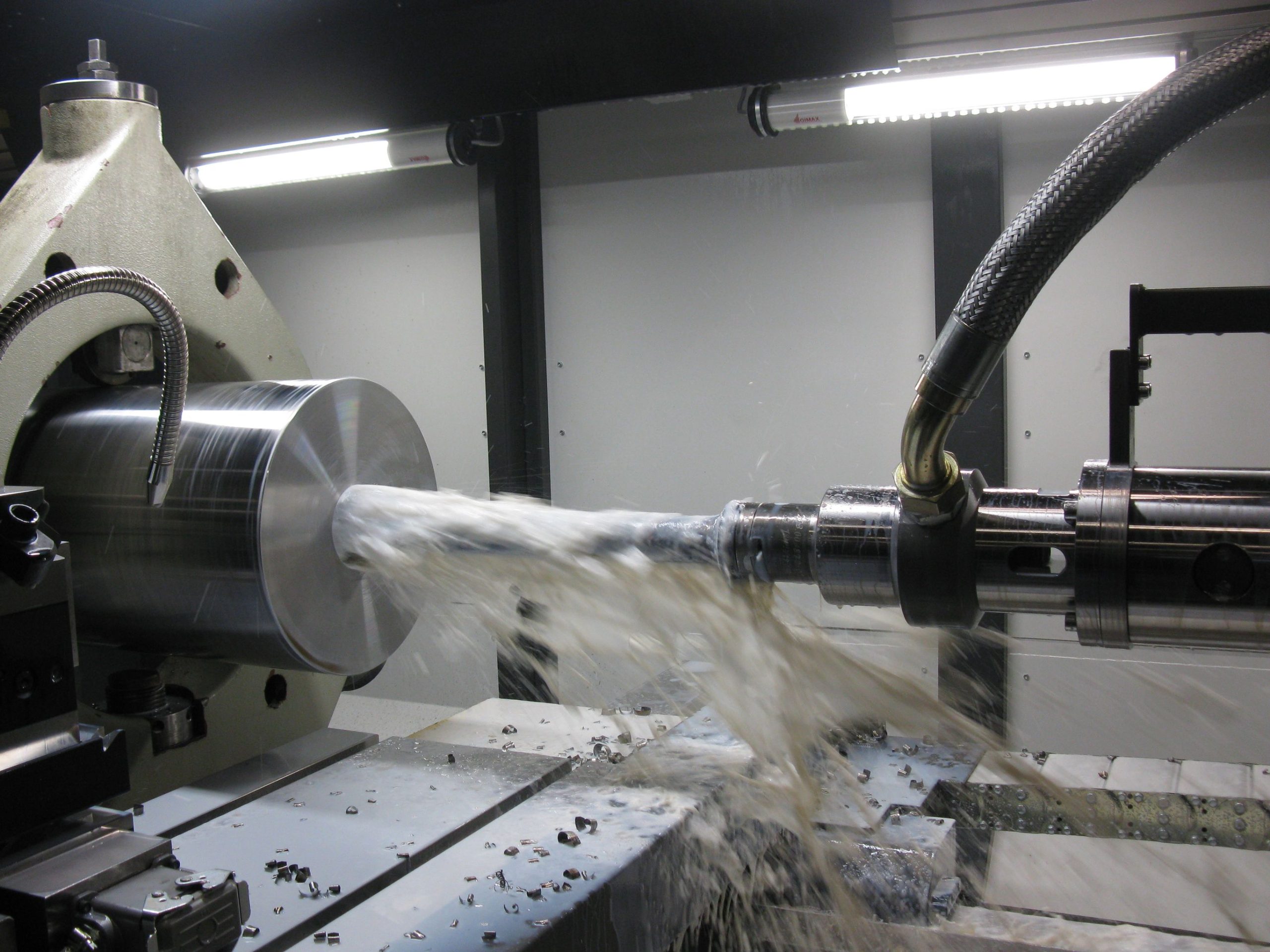

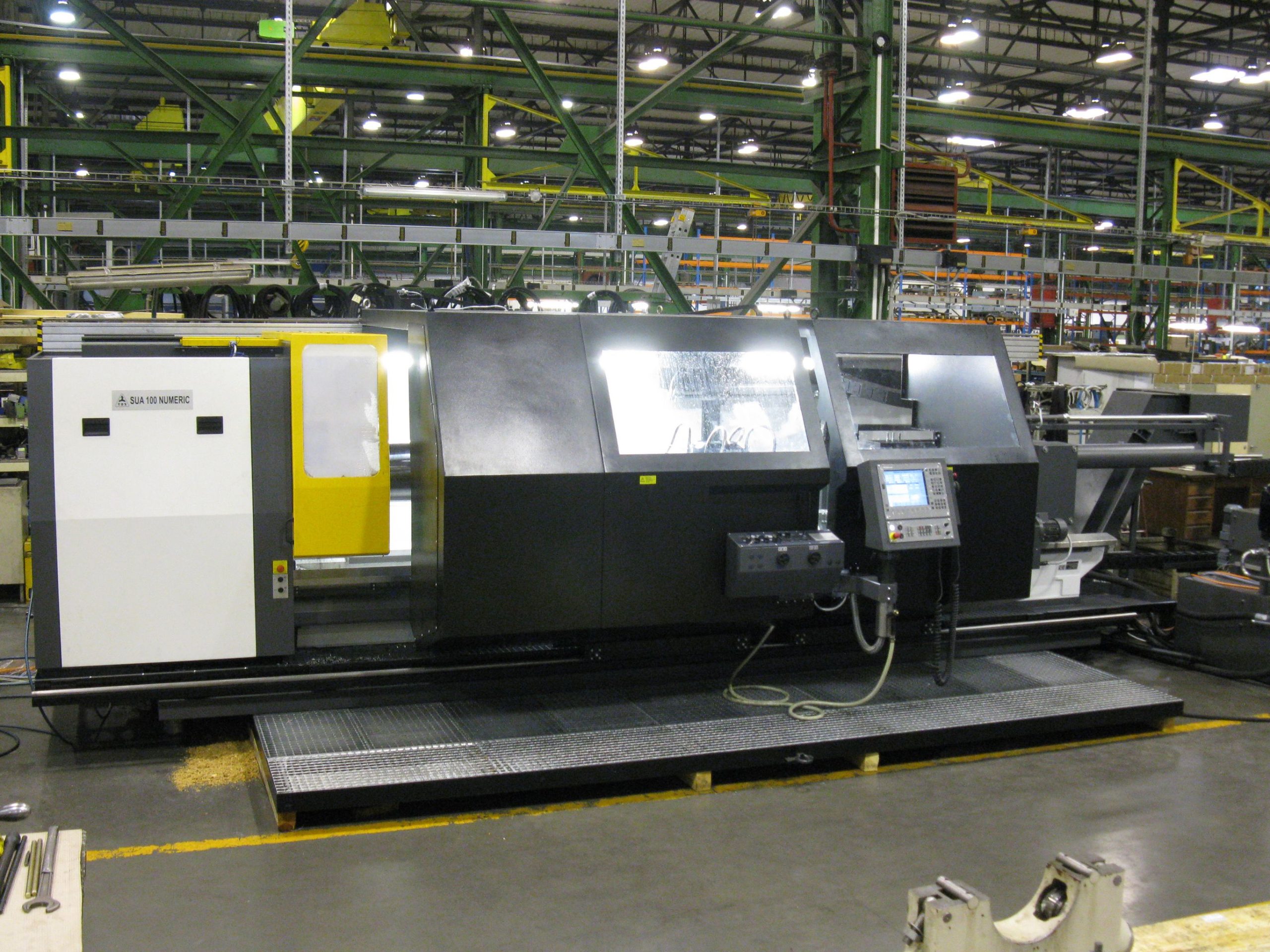

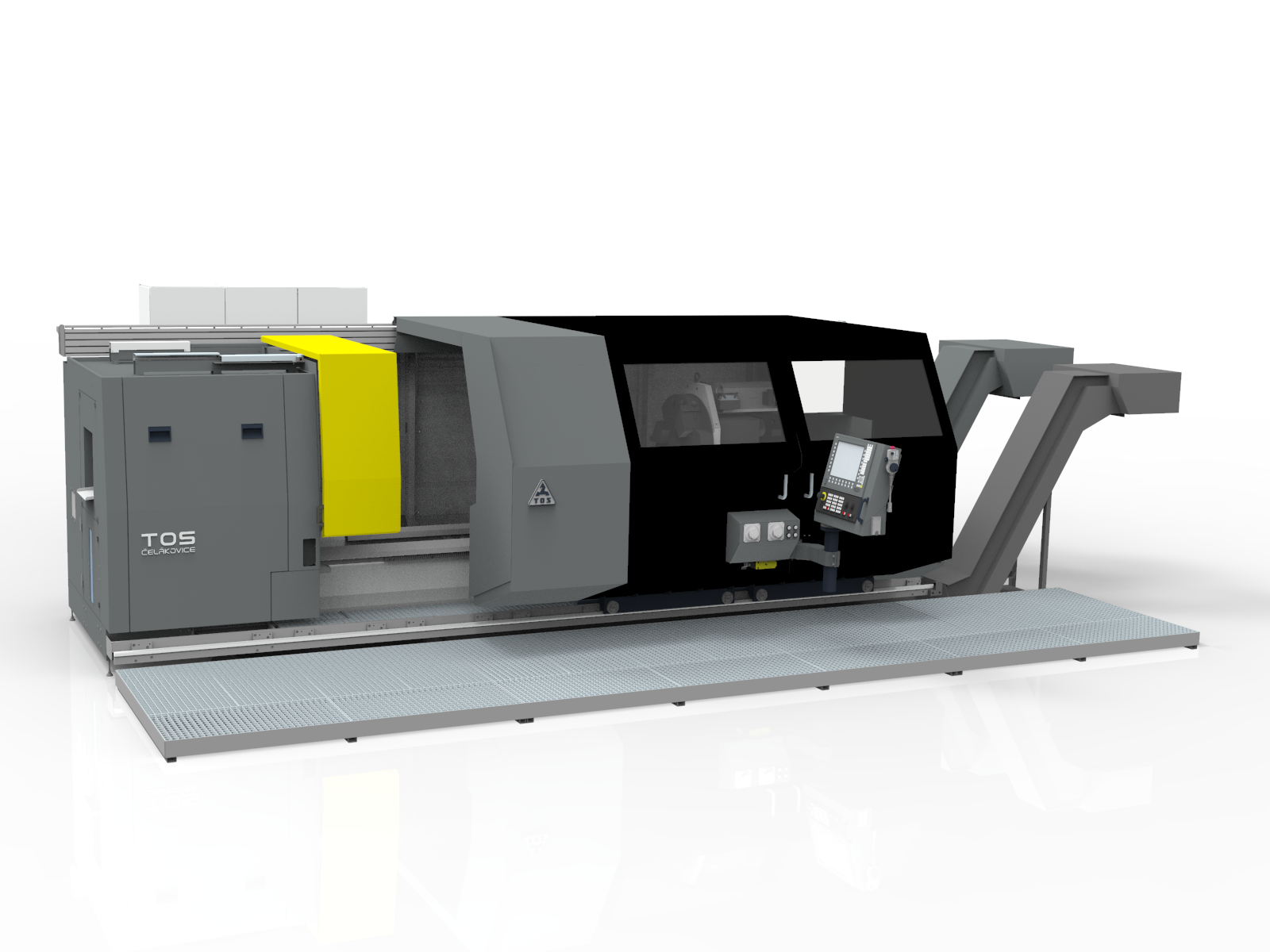

The SUA 100 NUMERIC universal centre lathe is a numerically controlled machine designed for roughing and finishing of shaft and flange components, for thread cutting, boring, turning of cones and various shaped rotary surfaces. The machine has a horizontal bed of rigid construction, the guide surfaces of the bed are hardened and ground, the countersurfaces on the longitudinal slide are lined with Turcite B sliding material. The SUA 100 NUMERIC lathe is a machine with automatic cycle control, which can be equipped with a Siemens Sinumerik ONE control system.

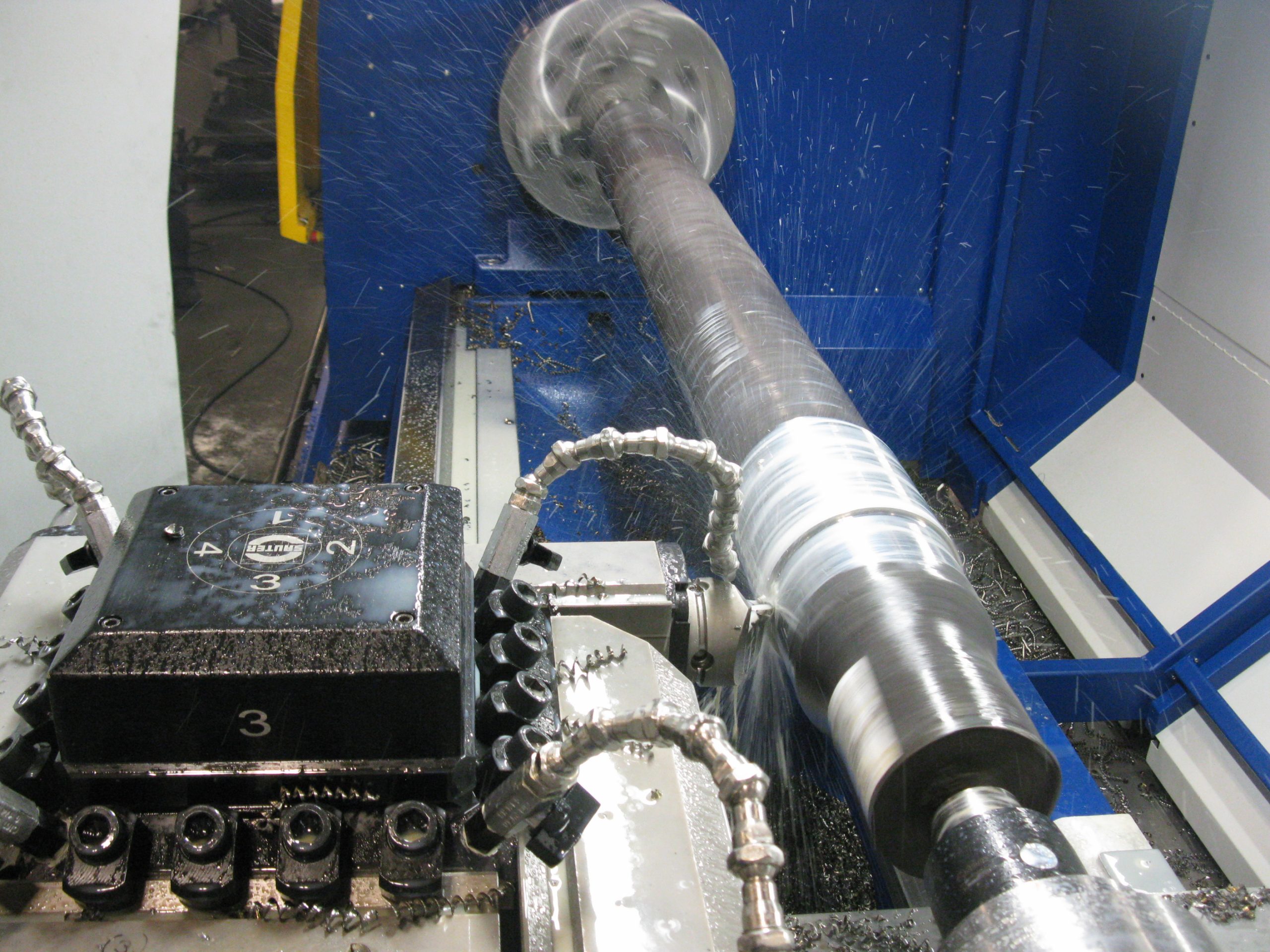

The longitudinal drive – Z-axis is made by a servo drive, directly on the ball screw. For machines longer than 5,000 mm of turning length, the drive is made via a toothed rack. The transverse drive – X-axis, is realized by a servo drive directly on the ball screw. Measurement of both displacements is carried out by rotary sensors located on servomotors. On machines of longer turning lengths, the Z-axis – longitudinal feed is measured directly, by a linear ruler. The machine can be equipped with both manually operated knife heads and multi-position CNC controlled heads from various companies. It can also be equipped with a large number of special accessories and design solutions that meet the requirements of current machining technology.
