Swing diameter: 630 mm
Distance between centres: 1000, 1500, 2000, 3000,4000, 5000, 6000 mm

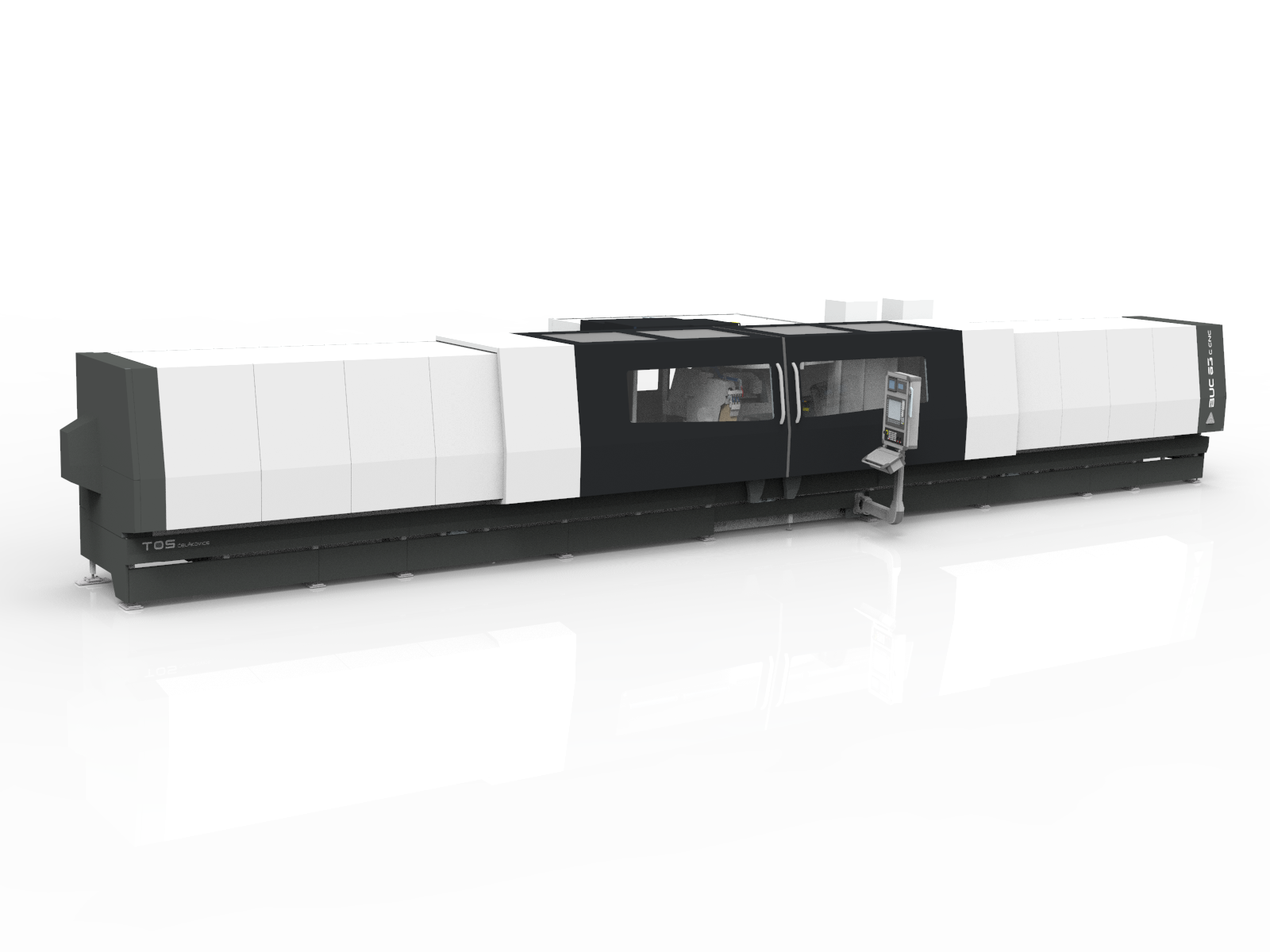

The BUC 63 C Multi grinding machine with program-controlled automatic rotation of the grinding unit around the vertical axis and a CNC control system is designed for external or internal grinding of workpieces clamped between centers or flying in a chuck in the driving headstock. The automatic rotation of the grinding unit, equipped with multiple grinding heads, significantly expands the technological capabilities of the grinder.
CE machine design, SIEMENS Sinumerik ONE control system, MCP2200c operator panel
with 22″ monitor IPC477E, controlled axes X – grinding headstock infeed, Z – table feed, B – swivel
Basic design grinding wheelhead, handwheel for X and Z axes (switching), linear and circular interpolation
of X and Z axes, custom programming in ISO code, remote diagnostics, full covering with automatically controlled front door.
